In-House Shortening Plant for Biscuit Manufacturers

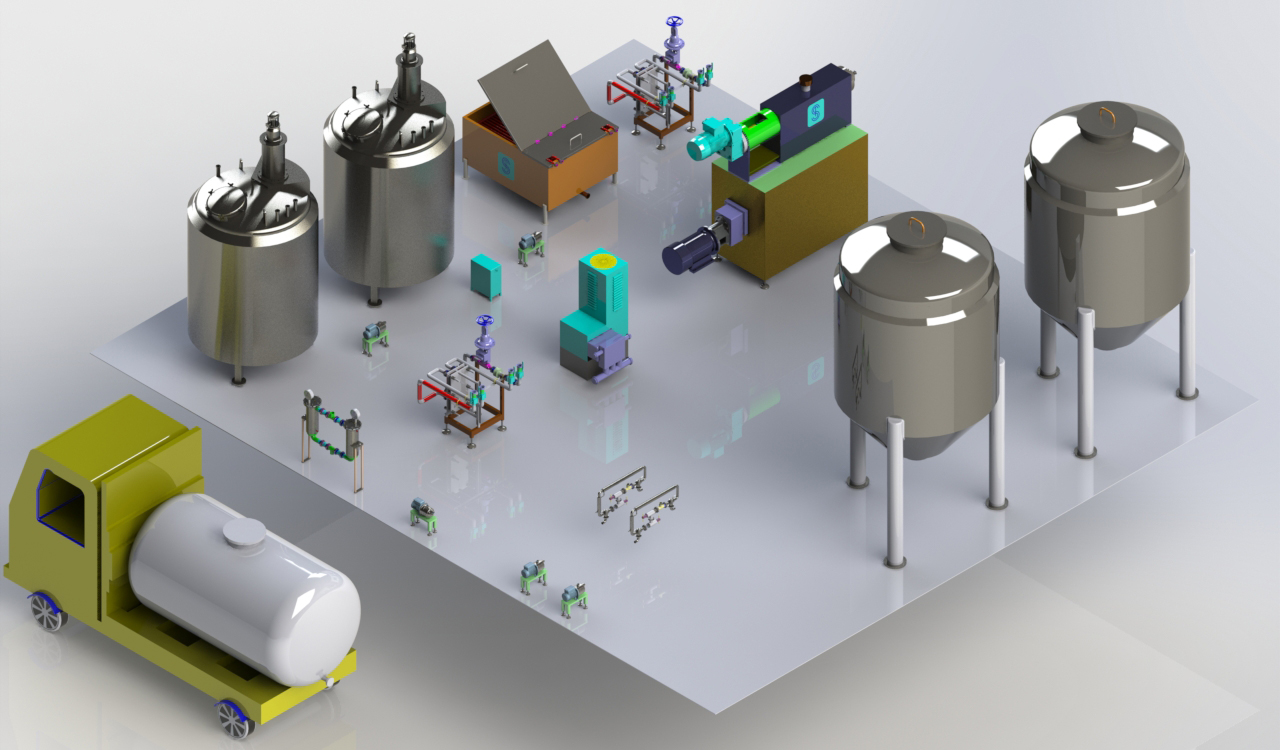

In-house Shortening Plants is specifically manufactured to save costs for Biscuit manufacturers by having an inline shortening plant. Such a plant shall be complete with SS Tanks, Duplex Filters, Transfer Pumps, Pre-Cooler, High Pressure Plunger Pump, Sinitators and Crystallizers, Homogenizing Valves and Remelting Section. The shortening thus produced shall be mixed online into the biscuit dove for further processing.

Know More

Benefits of In-house production of Shortening

  • The total cost of Production for in-house manufacturing of Shortening can be estimated at a maximum of 82-85% of the cost incurred by sourcing Shortening from Edible Oil Refineries in corrugated boxes.
  • Investment can be recovered within 10-12 months of successfully commissioning the plant for a assuming a production of 200 tonnes of Shortening and approximately 24-26 months for a production of 100 tonnes of Shortening per month.
  • Power Savings as a result of use of appropriate size motors. In the Oil refineries, since the same machine is used for the manufacture of various products which require higher capacity motors, the Power Consumption is higher.
  • Savings in packaging of the material. Carton Boxes and polythene bags will not be required if shortening produced in house. Additional Manpower for the packing of the materials can be eliminated.
  •  Savings on Packaging Machines.
  • Savings on Transport as transport of Edible Oil in bulk to cost much less than the transport of 15 kg Cartons.
  • Profits accounted for the manufacture of Shortening can be saved.

Shortening Equipment

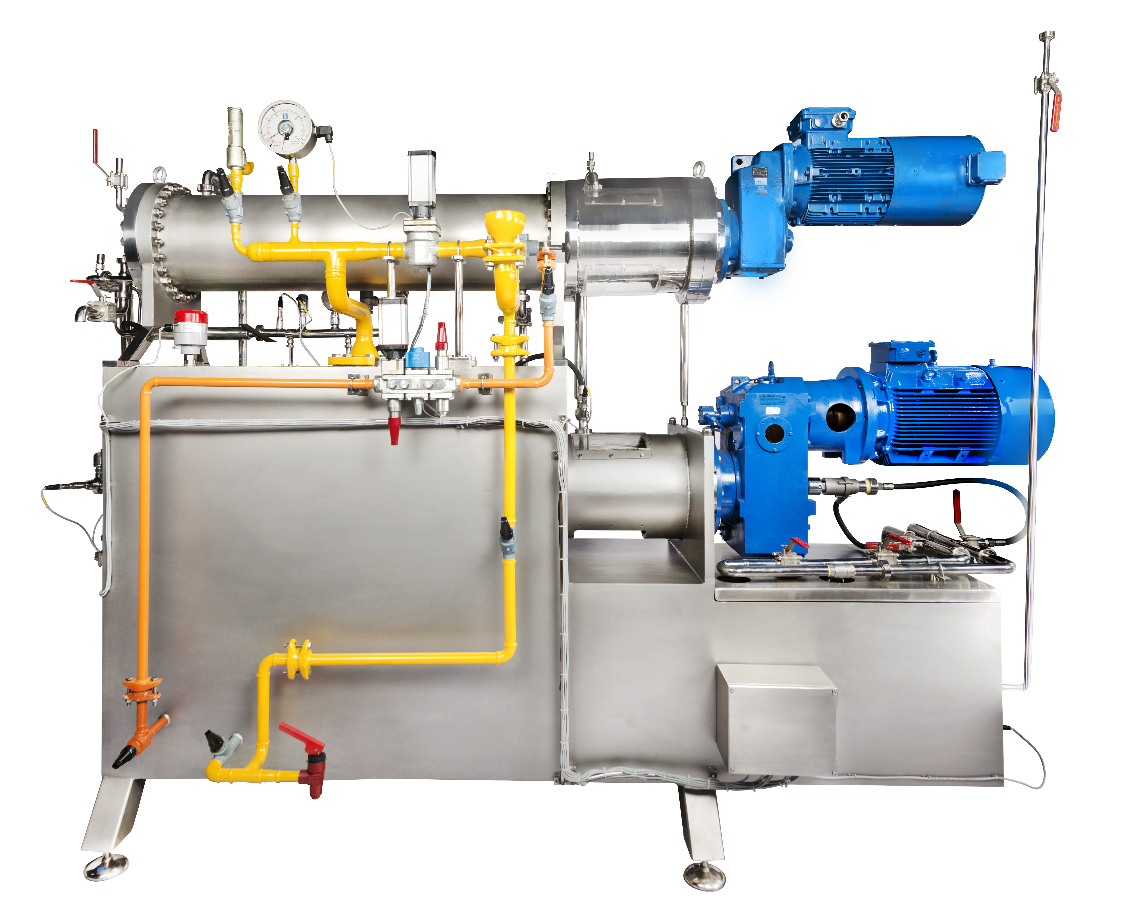

The heart of the In-house Shortening Plant shall be complete with one Sinitator and one Crystallizer designed for a maximum throughput of 1,350 kgs/hr. However, configurations for higher throughput can be designed upon request.

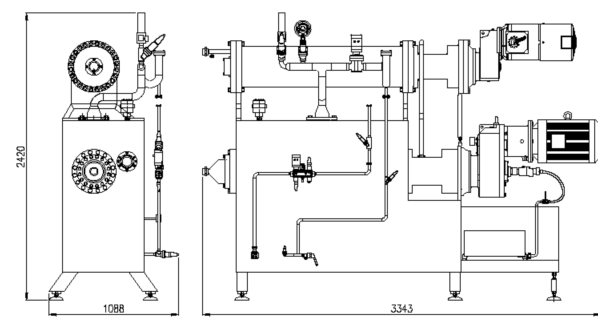

Machine Layout
